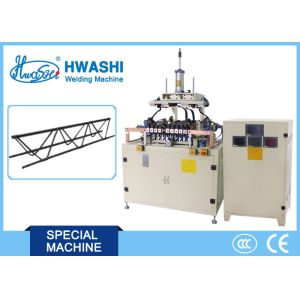

    Automatic Wire Mesh Welder Reinforcing Steel Bar Welding Machine With Rotary Table

    Ask Lasest Price
    Brand Name : HWASHI
    Model Number : WL-AT-150K
    Certification : CE/CCC/ISO
    Price : negotiation
    Payment Terms : L/C, T/T
    Supply Ability : 50 sets per month
    Delivery Time : 7-30 working days after received your payment
    • Product Details
    • Company Profile

    Automatic Wire Mesh Welder Reinforcing Steel Bar Welding Machine With Rotary Table


    Automatic Wire Mesh Welder Reinforcing Steel Bar Welding Machine With Rotary Table


    DESCRIPTION


    1. Manual wire loading and automatic welding machine;

    2. Equipped with rotary table with 4 working position for loading reinforcing wire mesh.

    3. Adopt five groups of electrode


    APPLICATION


    Suitable for continuous welding reforcing steel bar.



    SPECIFICATION

    No.

    Model

    WL-AT-150K

    1

    Input Power

    Two-phase

    2

    Rated Capacity

    150KVA

    3

    Rated Input Current

    750A

    4

    Rated Duty Cycle

    25%

    5

    Secondary Voltage Adjusting Grade

    2

    6

    Max Secondary Floating Voltage

    AC7.5V

    7

    Secondary Max Short

    Circuit Current

    26KA

    8

    Continuous Working Current

    20KA

    9

    Welding Transformer Insulation Grade

    Grade F

    10

    Forcing Curve of Welding Machine

    2 types

    11

    Storage Welding Model Number

    30 types

    12

    Welding Electrode

    6 sets

    14

    Effective Welding

    Width

    1200mm

    15

    Effective Welding

    Width Length

    1200mm

    16

    Automatic Mobile Speed

    0.5m/sec

    17

    Y direction Wire Feeding Speed

    0.5m/sec

    18

    Upper Electrode Stroke

    80mm

    19

    Lower Electrode Stroke

    30mm


    FEATURES


    1. Power Source 1: Adopt 2 sets of 150KVA special resistance welding transformer as the welding power source. Single-spot welding. Continuous duty cycle rate is 25%; the output current is larger than 26000A. The executive standard is GB/15578-2008; the magnetic permeability of forced temperature control cooling water silicon steel sheet is larger than 12000GS; special cooling water subloop; It can ensure the output welding current of the whole machine is constant and powerful in order to obtain high quality, high efficiency, stable welding spots.


    2. Power Source 2: Adopt medium frequency inverter welding source. Duty cycle rate reaches 50%. The three-phase power supply is under rectifying through a special inverter and converted to 1000Hz AC voltage and then be transmitted to a medium frequency transformer to be rectified so as to provide DC welding current. Compare with general AC pulse power supply, this kind of power source could be fast and precisely adjusted. Small impact to the power grid and lower requirement for the power grid compare with the single-phase welder of the same capacity.


    3.Automatic Wire Feeding System: Automatic feeding the wire with 2-5mm diameter and the maximum length of X axis is 1200mm while maximum Y axis is 1200mm. Use the servo motor to drive and use cylinder to vibrate in order to make sure the wires are in ordered arrangement. This machine is designed as X, Y axis two sets of automatic wire feeding system which will be located in the X and Y direction of the machine.


    COMPETITIVE ADVANTAGE

    1. HWASHI is the leading brand in resistance welding industry in China for 20 years; Factory direct sale, competitive price.

    2. Customized Service: We can help to design and develop the welding machine according to your requirement. We are flexible and capable Supplier.

    3. Genuine Product with Excellent Quality: 12 months warranty. Our machines are strictly complied with ISO9001:2000 and China Compulsory Certification. Most of our machines enjoy 8-10 years service life. 100% guarantee test before delivery.

    4. After Sales Service and Technical Assistance: 24 hours technical support by email. Our professional team is always here willing to be your technical consultant.

    5. Quick Delivery: Our company provides just-in-time delivery.

    6. Prompt Response to Customers: Your satisfaction is the goal we pursue.
